bladder tank - UL
Product Description

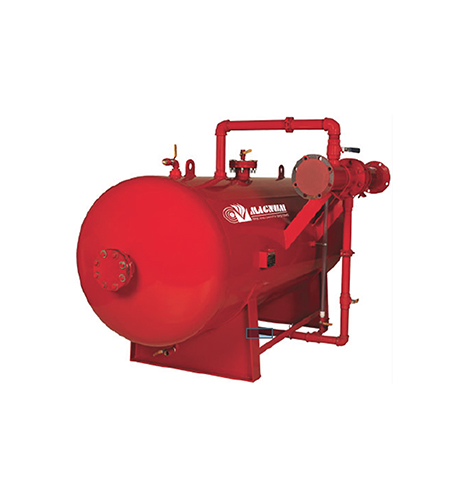

Bladder tanks are the main component in a balanced pressure proportioning system. The bladder tank is an ASME coded pressure vessel. The tanks are constructed of SA 516 GR.70 carbon steel and include a neoprene rubber bladder with nylon reinforcements and a perforated pvc center tube. Bladder tanks are available in both vertical and horizontal configurations and are an option in many high areas. The uncomplicated design avoids the risk of a system failure and the ease of operation requires no outside source. The bladder tanks are also offered with pre-piped ratio controllers, UL listed with sizes 3”, 4”, 6” and 8”.
• Design working pressure of 175 PSIG
• Hydro Tested at 263 psig
• Constructed of carbon steel
• Includes a Neoprene Rubber bladder with Nylon Reinforcements.
• Lifting Lugs
• Vertical Tanks are mounted on welded saddles with holes drilled for anchoring.
• Stainless steel ASME Nameplate
• ASME code section VIII, Division 1 U-Stamped.
• National Board Registration
• The exterior of all bladder tanks with a high gloss urethane.
Certifications
• American society of Mechanical Engineers (ASME)
• Underwriters Laboratories, Inc. (UL)
• National Board of Boiler and Pressure Vessel Inspection (NB)
